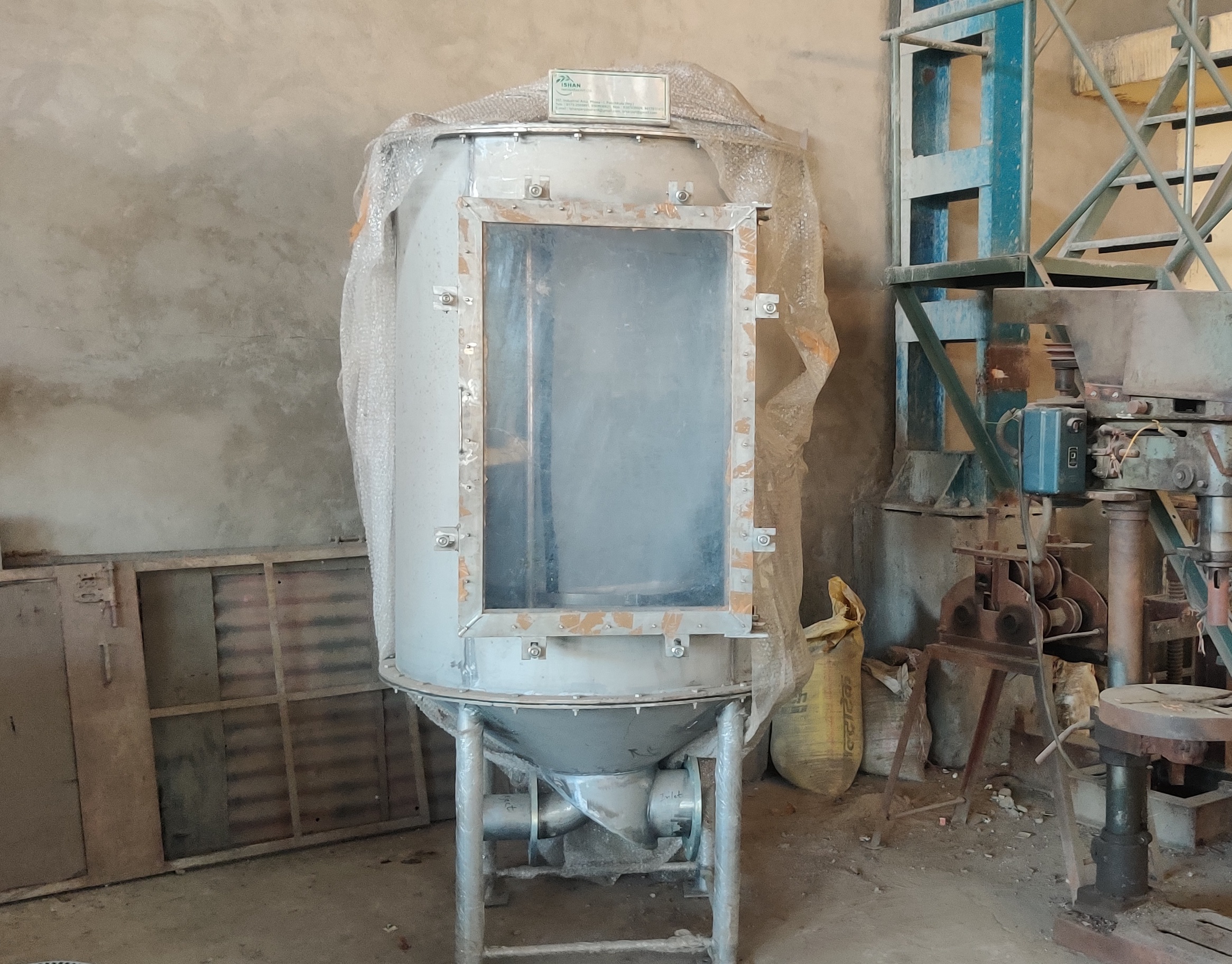

SPRAY FILTER

Ishan Spray Filter is designed for filteration of the effluents generated by the industrial activity;particularly generated by the industrial activity;particularly by paper industry.Effluent containing solids from 100 ppm to 5000ppm.A synthetic cloth of fine mesh from 65 to 500 microns is used as media for efficient fiber recovery and effluent fractionation.

It is fitted with cleaning shower mechanism which eliminates the cloth removal for cleaning.

Raw water enter the system under pressure of about 1 Kg/cm2(14.2 psi)

Through non-clogging nozzles it is sprayed uniformly on the media.A geared motor continuously rotates the drum with cloth.

Coarse fraction fall inside the drum and is directed for reuse.Fine fraction passes through cloth and is discharged seprately.

Cloth is cleaned periodically with shower spraying it.
